GLF72122

4 A, Slew Rate Controlled IQSmartTM Load Switch with Reverse Current Blocking

home Product Load Switch IC GLF72122
Product Features

  • Reverse Current Blocking

  • Low RON

    14 mΩ Typ at 5.5 VIN

  • Ultra-Low IQ

    1.3 μA Typ at 5.5 VIN

  • Ultra-Low ISD

    56 nA Typ at 5.5 VIN

  • IOUT Max

    4 A

  • Supply Voltage Range

    1.5 V to 5.5 V 6 Vabs max

  • Controlled VOUT Rise Time

    2000 μs at 3.3 VIN

  • Internal EN Pull-Down Resistor

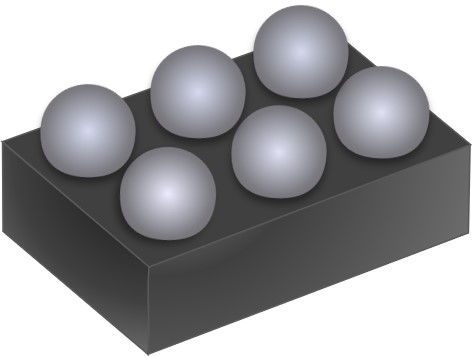

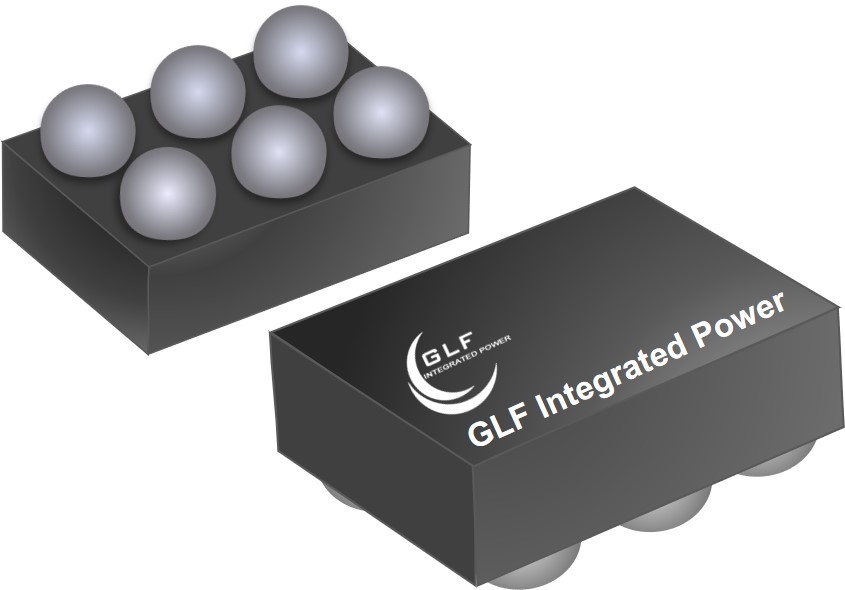

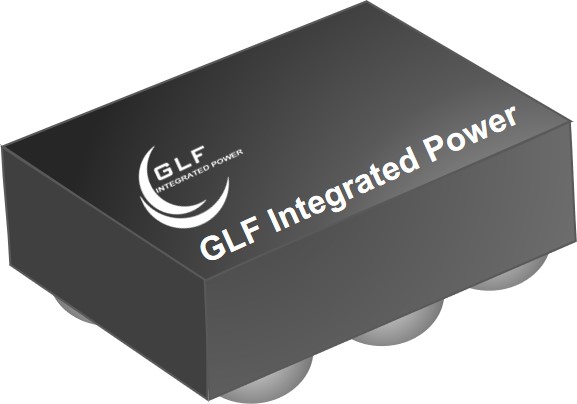

  • 0.97 mm x 1.47 mm x 0.55 mm Wafer Level Chip Scale Package

GLF72122
GLF72122
Product manual
Sample application
Product Description

The GLF72122 are an advanced technology fully integrated IQSmartTM load switch device with Reverse Current Blocking (RCB) technology and the slew rate control of the output voltage.


The GLF72122 offer industry leading Reverse Current Blocking (RCB) performance, featuring an ultra-low threshold voltage. It minimizes reverse current flow in the event that the VOUT pin voltage exceeds the VIN voltage.


The GLF72122 have industry leading efficiency. It features a 14 mΩ RON typical at 5.5 V, reducing power loss during conduction. The device also features ultra-low shutdown current (ISD) to reduce power loss and battery drain in the off state. When EN is pulled low, and the output is grounded, the GLF72122 can achieve an ISD as low as 56 nA typical at 5.5 V.
